Elevation Series

The relief and depth of the Shaker style revisited

Share

Cabinet door

The Elevation Series

Part of the Shaker collection, the Elevation series redefines classic elegance by adding a dimension of relief and texture. Offering several molding profiles and the option of a 3D Sublime center panel, this series combines the artisanal charm of the Shaker style with the contemporary precision of Dörr Industries’ processes.

Designed for designers and kitchen builders seeking a distinctive look and a highly refined finish, the Elevation series is ideal for projects where visual depth is a key design element.

Discover our achievements

The Elevation Series models

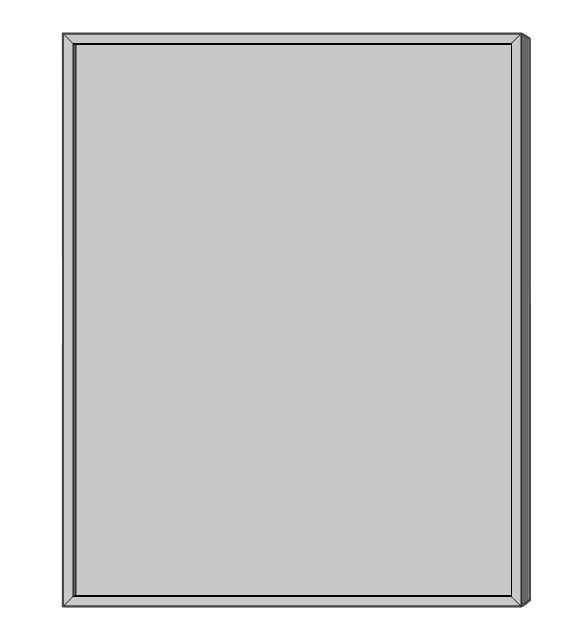

¼-inch MDF moldings

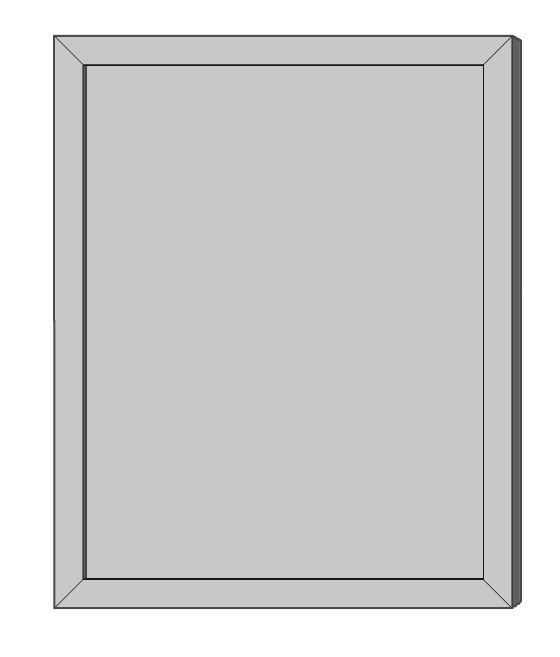

½-inch MDF moldings

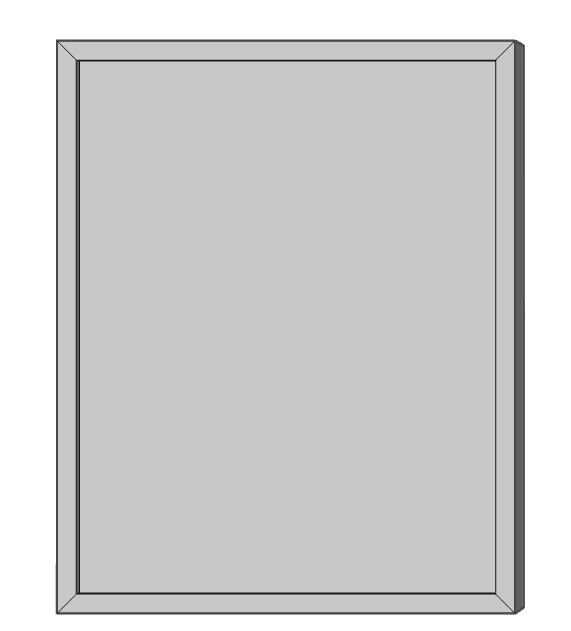

¾-inch MDF moldings

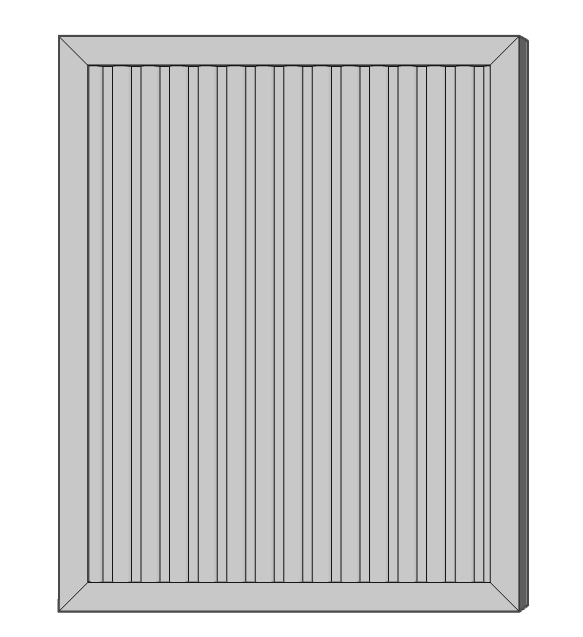

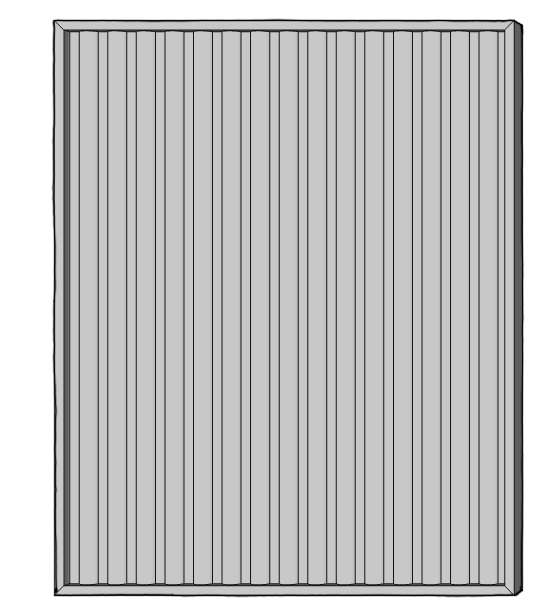

Option: Sublime 3D center panel
The Elevation Series also offers the option of a Sublime 3D center panel, available in two distinct profiles:

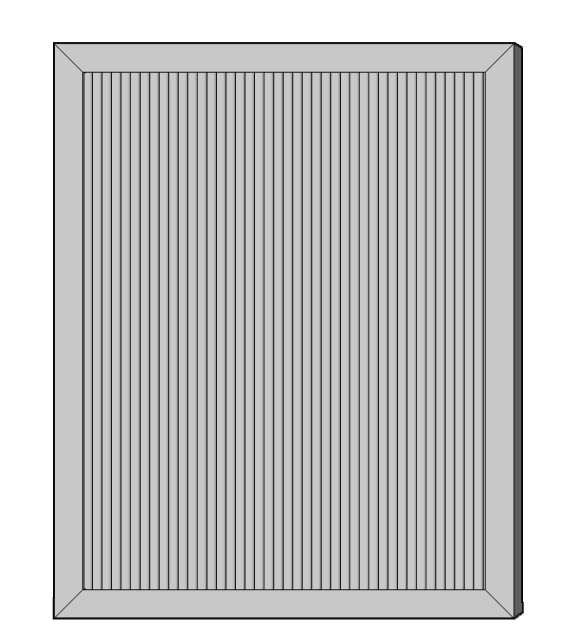

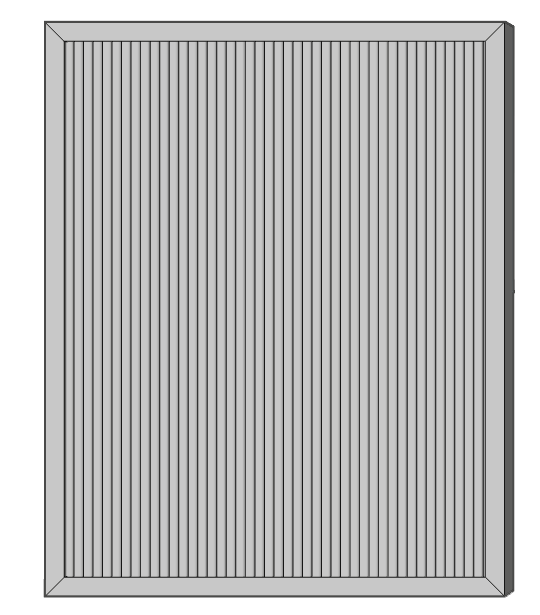

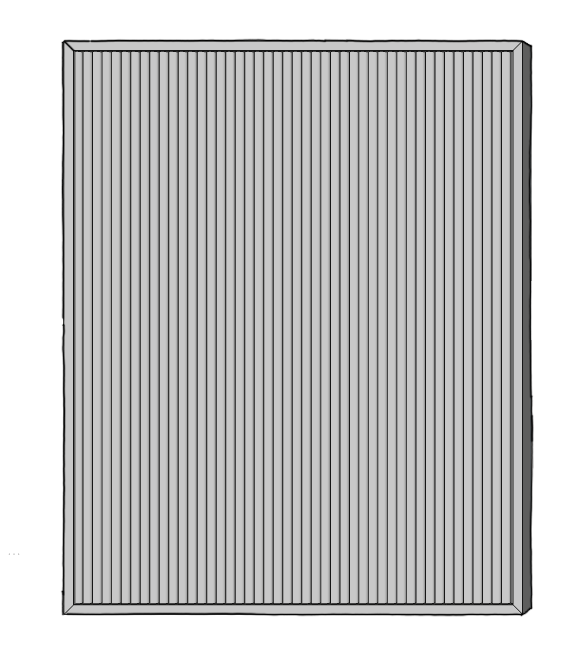

  • 03: fine, closely spaced grooves for a delicate relief effect.

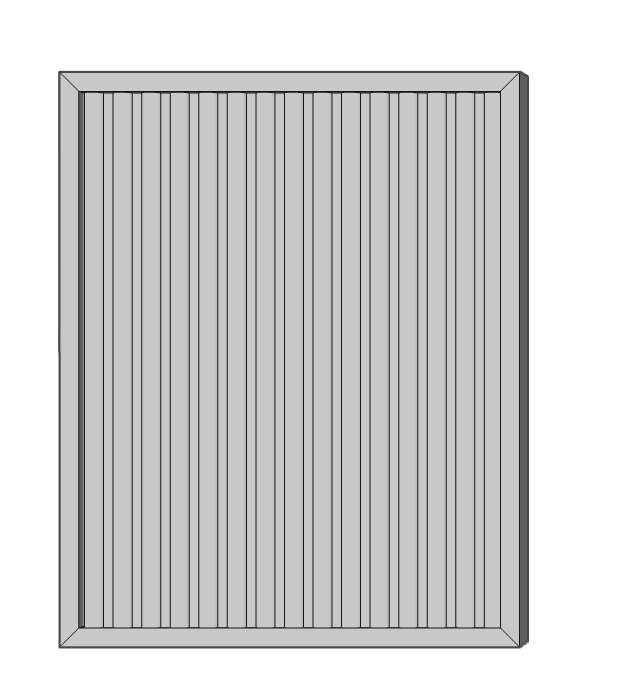

  • 06: deeper grooves for an accentuated three-dimensional effect.
These panels add a contemporary texture while maintaining the strength and durability of MDF.

Colors available for these cabinet door models

The Elevation series is available in over 40 colors from Dörr Industries’ partner finish ranges. The shades range from solid colors to rich, textured wood imitations, making them suitable for any type of project: classic, contemporary, or transitional.
Silky Touch Polymer (2-sided finish)
Essenziale 3D
Uniboard (2-sided finish)
Tafisa Wood Grain (2-sided finish)

*All colors available only in P-605, P-606

Perfect Mat (one-sided)

 *All colors available only in P-605, P-606

Velour Touch (double-sided)

 *Toutes les couleurs disponibles seulement en P-605, P-606

Dimensions and technical specifications

TECHNICAL INFO MINIMUM
Height and width
SUBLIME
(21MM)
SUBLIME 3D
(21MM)
UNIBOARD
(21MM)
TAFISA
(21MM)
LUMMIA
(21MM)
PURDECO
(21MM)
Max. HeightMax. Width Max. HeightMax. Width Max. HeightMax. Width Max. HeightMax. Width Max. HeightMax. Width Max. HeightMax. Width
P-405, P-505, P-605 5 7/8'' 108"46" 108"46" 95"46" 95"46" 108"59" 107"46"
P-406, P-506, P-606 5 7/8'' 46"108" 46"108" 46"95" 46"95" 59"108" 46"107"
V-405, V-505, V-605 5 7/8'' 108"46" -- 95"46" -- -- --
V-406, V-506, V-606 5 7/8'' 46"108" -- 46"95" -- -- --

Additional options

  • Sublime 3D center panel optional (profiles 03 and 06).

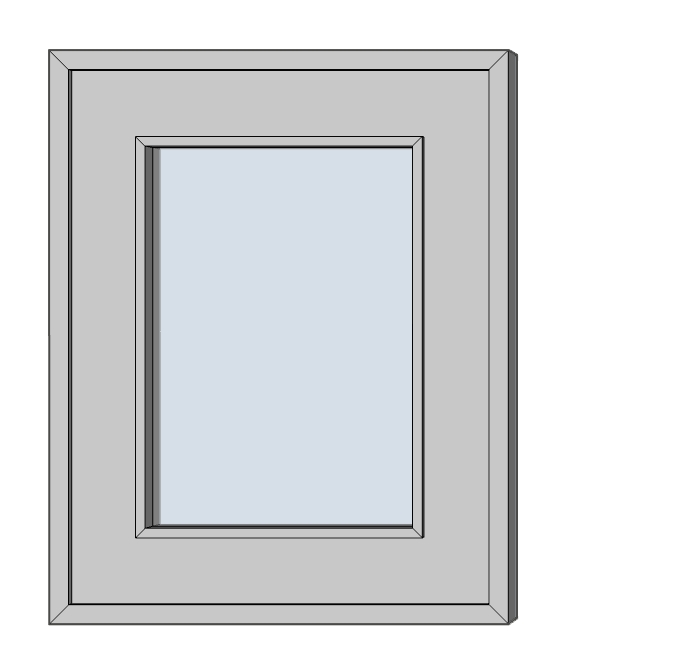

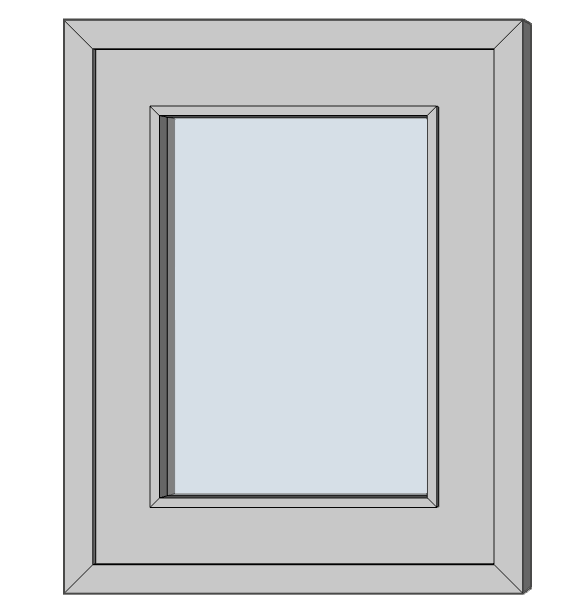

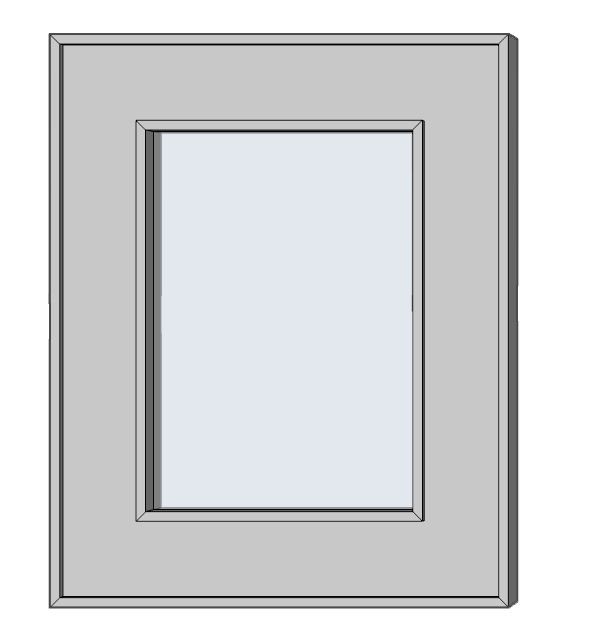

  • Clear vinyl gasket for glass versions.
Dörr tip: For glass doors, subtract 3 ⅞ in. (9.8 cm) from the height and width of the door for the glass dimensions.

Resources and downloads

Contact us for guidance on our selection or to obtain printed copies.
